Lipothan Reactor

The ACS Lipothan reactor, with its patent pending technology, is the hybrid version of the ACS reactors.

Range of application:

• Wastewater contains fats, oils, starches or proteins
• COD concentration of 1-100 g/l
• Lipophilic substances up to 1,000 mg/l

Feature :

• Retention time 1-10 days

Function:

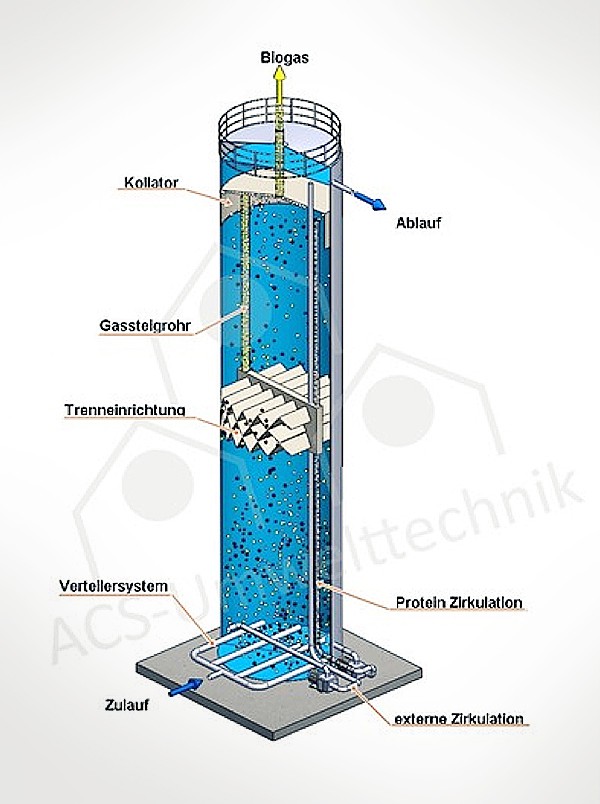

The ACS Lipothan reactor has two strong cleaning areas consisting of a separation unit in the middle and a collator in the top region. These cause a laminar flow throughout the reactor even at large reactor heights.

In the separator, the up flowing fats, as well as gas bubbles, are separated from the water stream. An external circulation ensures the equalization of the wastewater in the reactor.

The collator retains the floating fat, oil or proteins within the reactor until they are biological degraded. Recirculation occurs via separate pipe.

For start up, the reactor is filled with the agglomerated methane bacteria, or so-called pellets. The polluted raw wastewater is supplied to the ACS Lipothan reactor continuously via the distribution system in the lower area of the reactor. Once the organic solute pollutants, present in the wastewater, come in contact with the pellets, the formation of energy-rich biogas immediately begins.
